TM 5-3895-379-23-1
0198
REMOVAL - Continued
12.

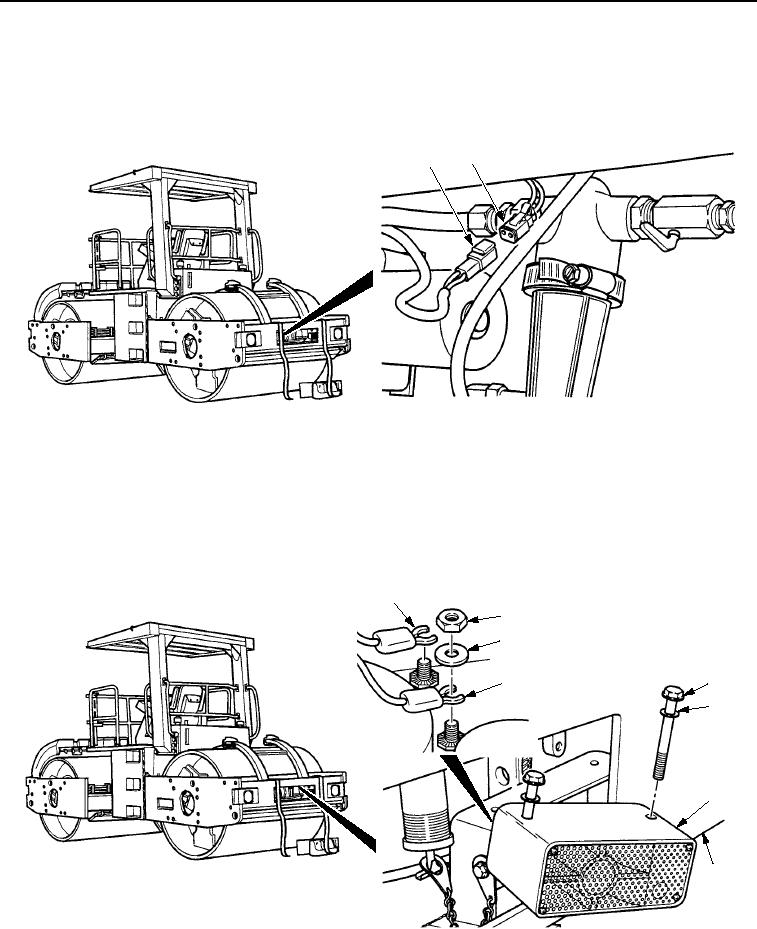

Disconnect rear wiring harness connector (Figure 8, Item 2) from water spray pump connector
(Figure 8, Item 1).
2
1
M0313SWR
Figure 8. Rear Wiring Harness Removal.
13.
Loosen two screws (Figure 9, Item 5).
14.
Remove backup alarm (Figure 9, Item 7), two screws (Figure 9, Item 5), and washers (Figure 9, Item 6) from
rear bumper assembly (Figure 9, Item 8).
15.
Remove two nuts (Figure 9, Item 2), washer (Figure 9, Item 3), and wires (Figure 9, Items 1 and 4) from backup
alarm (Figure 9, Item 7).
1
2
3
5
4
6
7
8
M0314SWR
Figure 9. Rear Wiring Harness Removal.
03/15/2011Rel(1.8)root(maintwp)wpno(M00136)
