TM 5-3895-379-23
PROPEL CONTROL LEVER ASSEMBLY MAINTENANCE - CONTINUED
0113 00
INSTALLATION - CONTINUED
6.
Check fill level of hydraulic tank (WP 0009 00).
7.
Tighten hydraulic oil tank fill cap (6).
8.

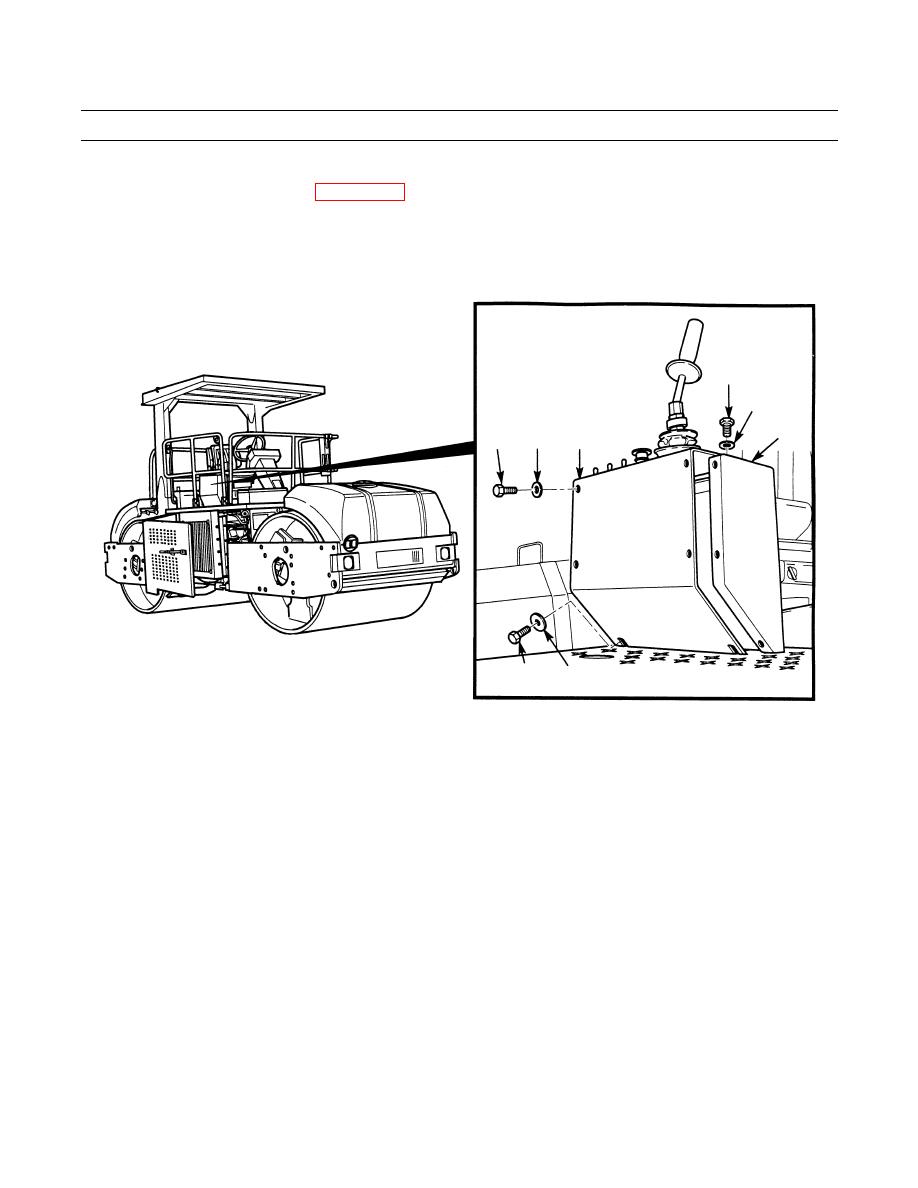

Install plate assembly (5) to operator station (4).
9.
Install nine bolts (1) and two washers (2) and seven washers (3) to operator station (4).
1
3
4
1
3
5
1
2
401-446
10.
Close right-side door assembly (TM 5-3895-379-10).
11.
Remove chocks (TM 5-3895-379-10).
END OF WORK PACKAGE
0113 00-9/(0113 00-10 Blank)
