FUNCTIONAL INDICATOR LIGHT ASSEMBLY REPLACEMENT - CONTINUED
0090 00
INSTALLATION - CONTINUED
NOTE
Before installing functional indicator light assembly bracket on functional indicator light assembly, ensure
functional indicator light assembly is positioned so icons are right-side up when instrument box assembly is
installed.
4.
Install functional indicator light assembly bracket (12) on stud (13) with new lockwasher (11) and nut (10).
5.
Connect connector (8) to functional indicator light assembly (9).
6.

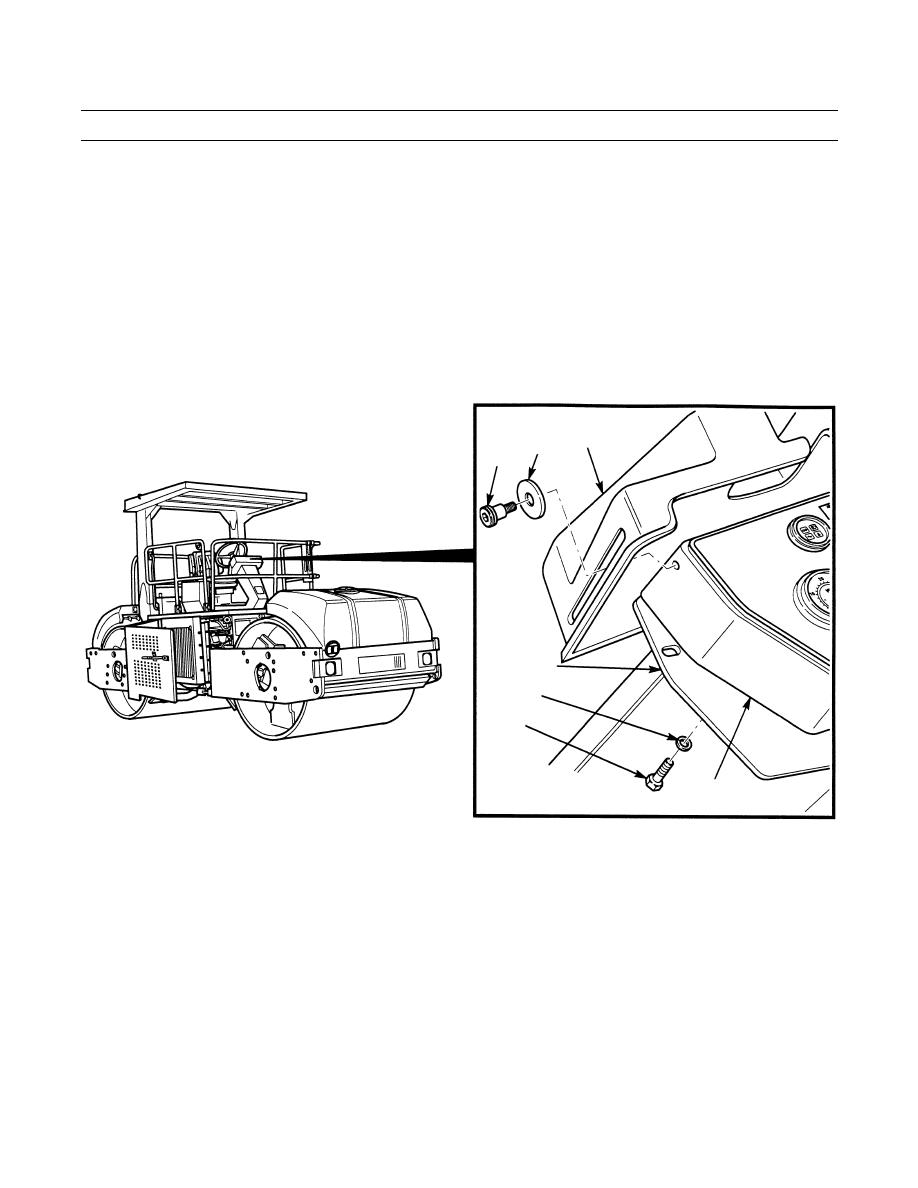

Install instrument box assembly (4) on operator station (7) with three washers (6) and screws (5).
7.
Install vandal guard (3) on instrument box assembly (4) with two washers (2) and shoulder screws (1).
3
2
1
7
6
5
4
401-601
8.
Close right-side door assembly (TM 5-3895-379-10).
9.
Remove chocks (TM 5-3895-379-10).
END OF WORK PACKAGE
