FUEL FILTER ASSEMBLY MAINTENANCE - CONTINUED
0040 00
FUEL FILTER ELEMENT REMOVAL
WARNING
DO NOT perform fuel system checks, inspections or maintenance while smoking or near fire, flames or
sparks. Fuel may ignite, causing injury or death, or damage to machine.
Fuel is very slippery. Immediately wipe up any spills. Failure to follow this warning may cause injury.
NOTE
Use a container to catch any fuel that may drain from system. Dispose of fuel IAW local policy and
ordinances. Ensure all spills are cleaned up.
Use funnel to direct fuel drainage into container with 1 qt (0.9 l) minimum capacity.
1.

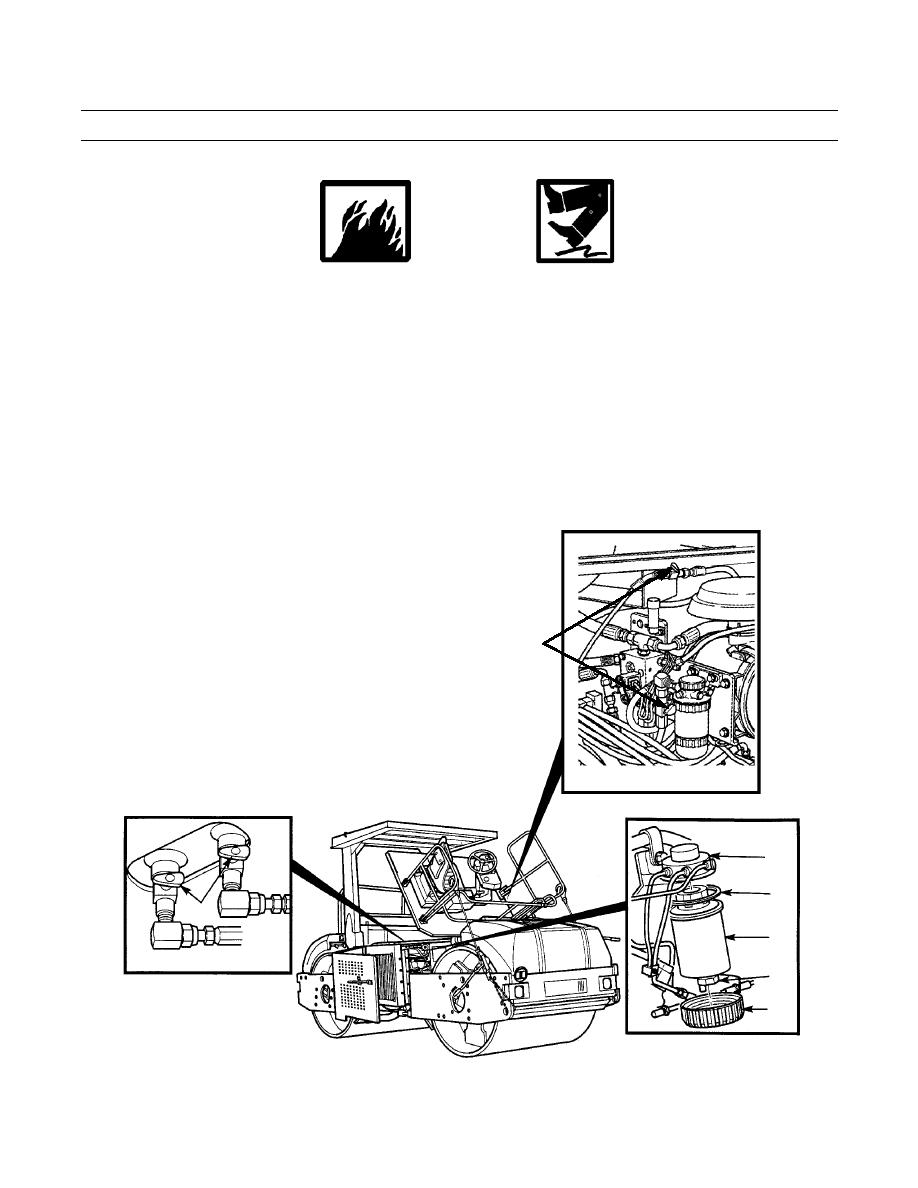

For CB534B Roller, close fuel supply valves (1).
2.
For CB534C Roller, close fuel supply valves (2).
3.
Turn drain valve (3) on bottom of filter element (4) to left and drain fuel into container.
4.
Remove ring (5), filter element (4) and seal (6) from filter assembly (7). Discard seal.
.
