TM 5-3895-379-23-1
0038
TROUBLESHOOTING PROCEDURE
SYMPTOM
HYDRAULIC OIL PRESSURE IS LOW (WARNING LIGHT AND WARNING HORN ON)
MALFUNCTION
Hydraulic Oil Filter Indicator In Red Zone.
CORRECTIVE ACTION
WARNING
When working on a running engine, provide shielding for exposed rotating parts.
Tools, clothing or hands can get caught and cause injury.
1.
Open right-side door assembly (TM 5-3895-379-10).
2.
Check hydraulic oil filter indicator with engine running at high idle.
a.
If filter indicator is in red zone, replace filter (Volume 2, WP 0257).
b.
If filter indicator is not in red zone, notify supervisor.
FAN
BLADE
RED ZONE
WHITE FILTER INDICATOR
(CB534B ONLY)
HYDRAULIC
OIL FILTER
INDICATOR
T0125SWR

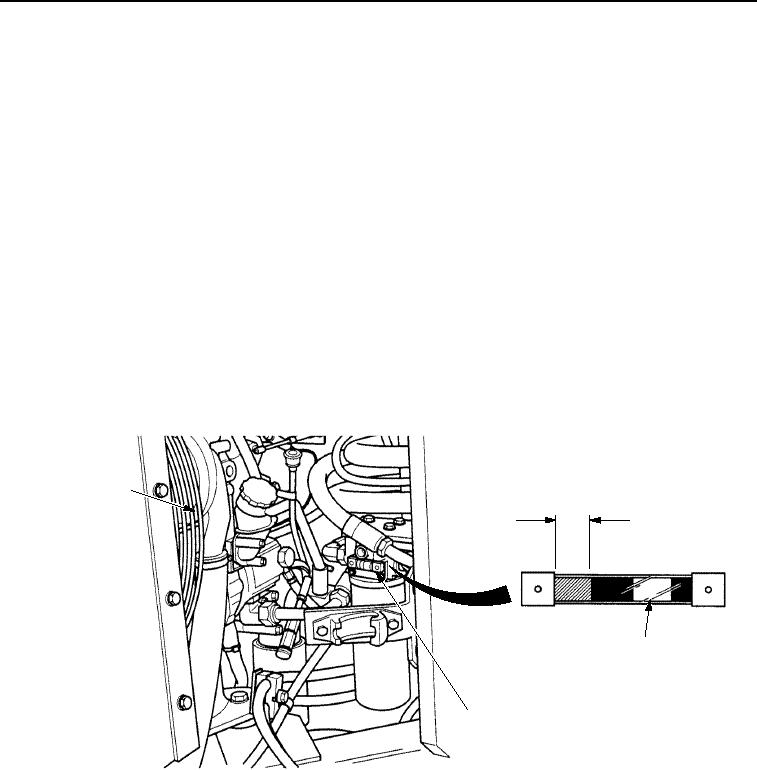

Figure 1. Hydraulic Oil Filter Indicator.
END OF WORK PACKAGE
