TM 5-3895-379-23
HYDRAULIC OIL COOLER AND FAN SHROUD REPLACEMENT - CONTINUED
0145 00
INSTALLATION - CONTINUED

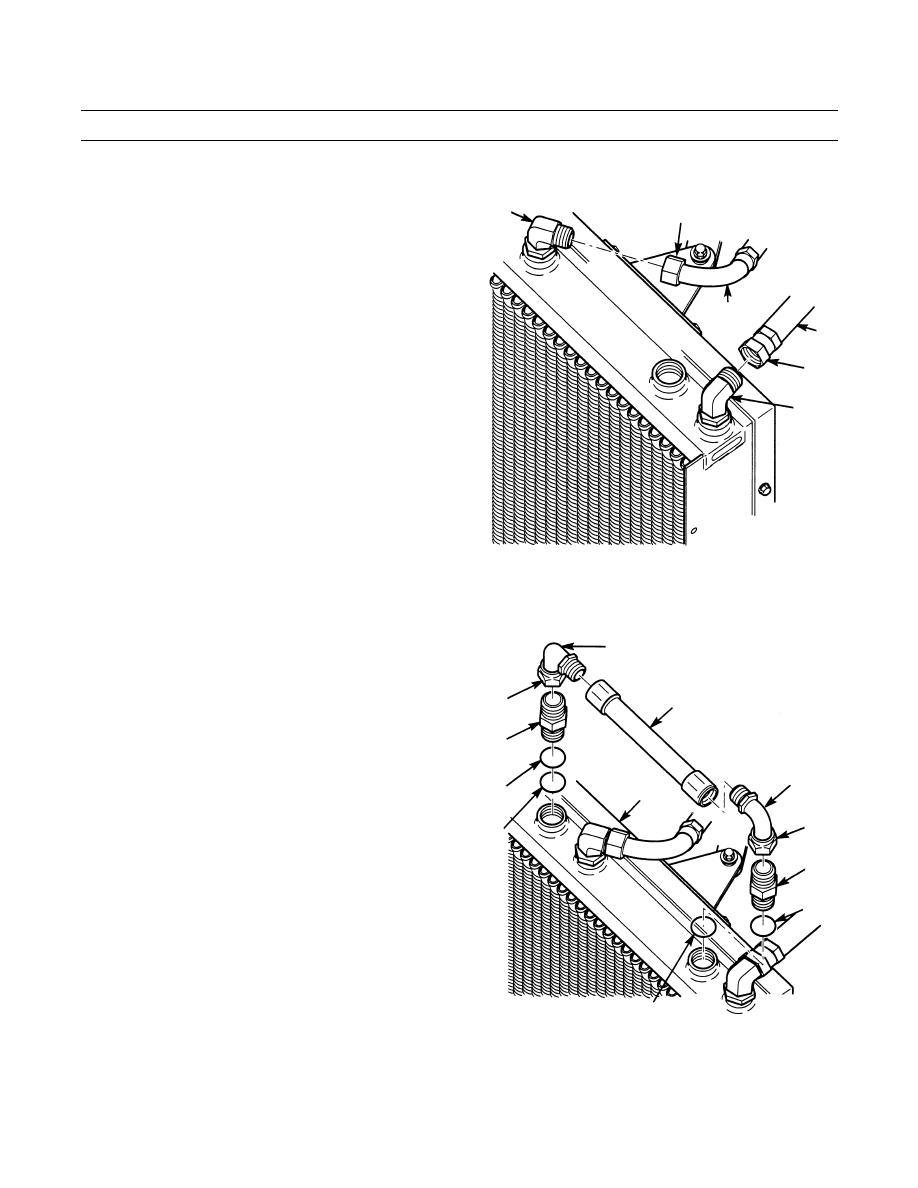

8.
Install hose (14) on elbow (15) and tighten nut (13).
12
10
9.
Install hose (11) on elbow (12) and tighten nut (10).
11
14
13
15
401-748
10.
Install new preformed packing (9), new O-ring (8) and
2
connector (3) on hydraulic oil cooler (6).
11.
Install new preformed packing (7), new O-ring (8) and
5
connector (4) on hydraulic oil cooler (6).
1
12.
Install hose assembly (5) on two elbows (2).
3
13.
Install elbow (2) on connector (4) and tighten nut (1).
14.
Install elbow (2) on connector (3) and tighten nut (1).
2
6
9
1
8
4
7
8
401-753
0145 00-7
